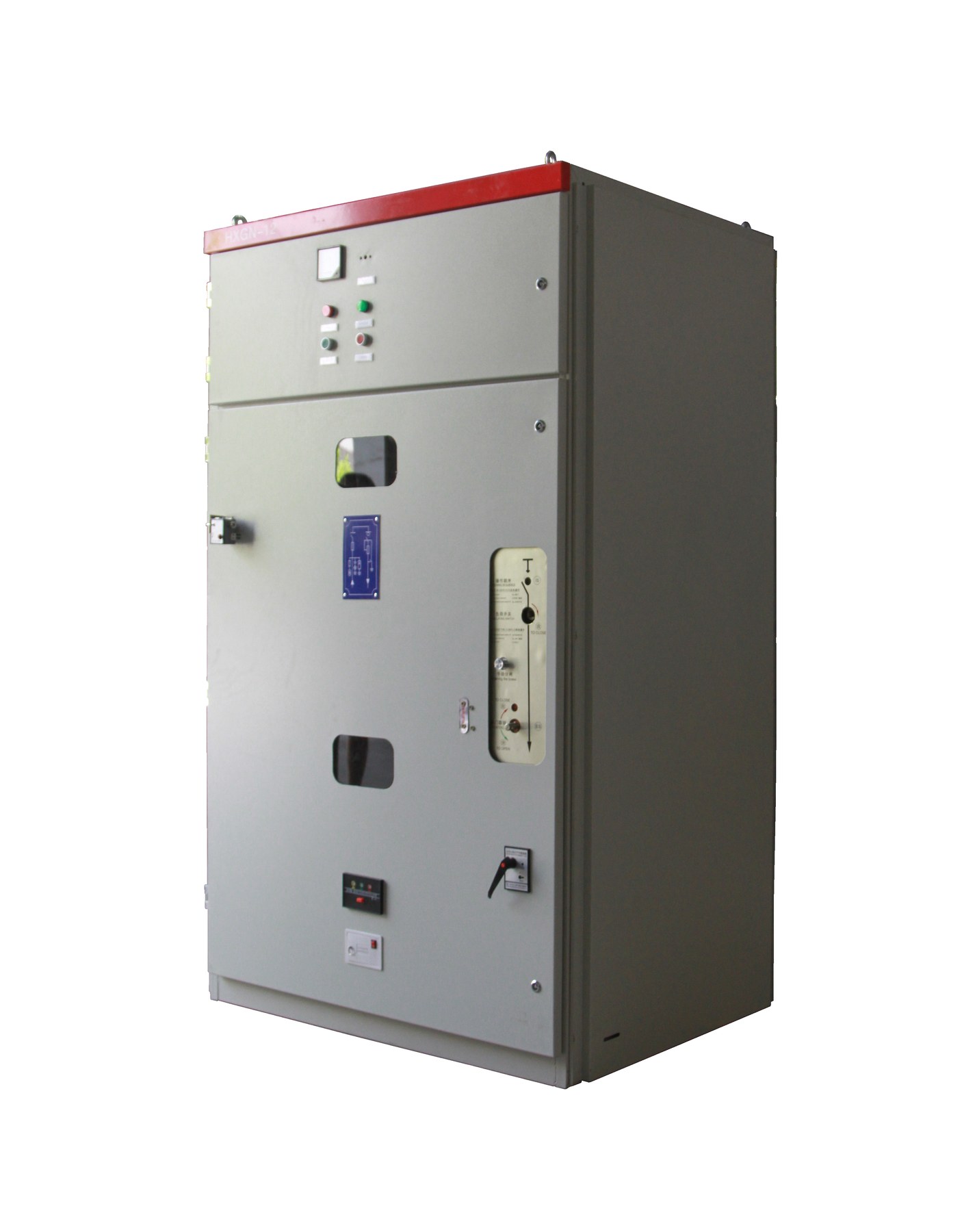

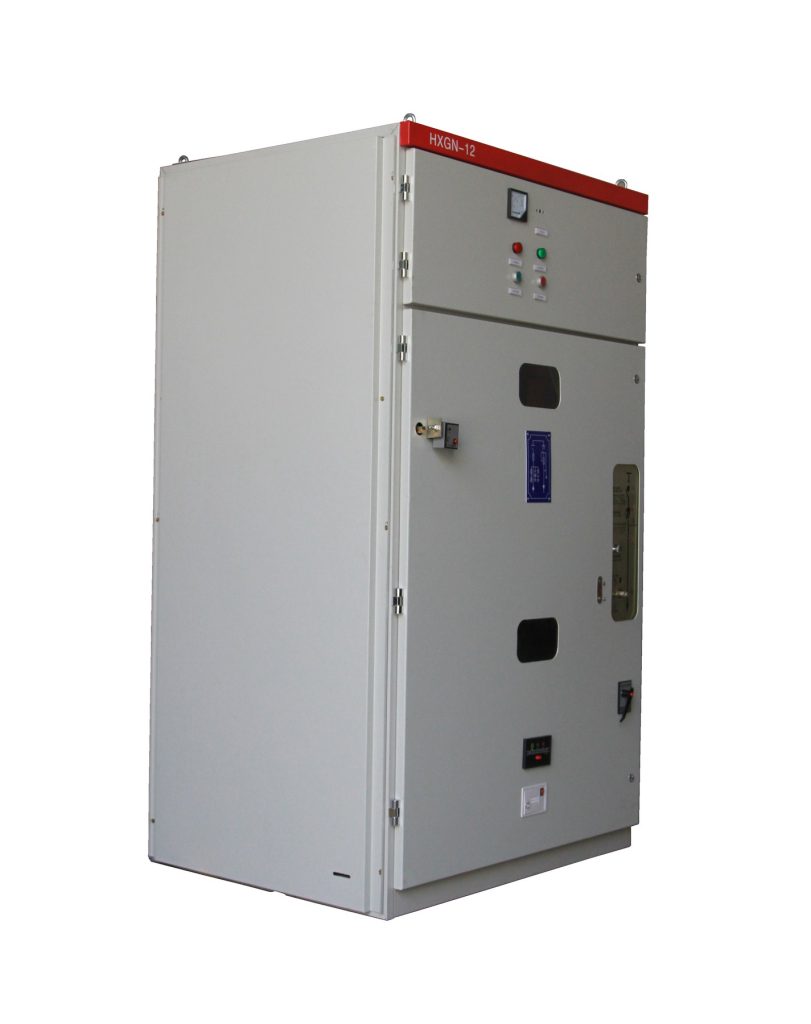

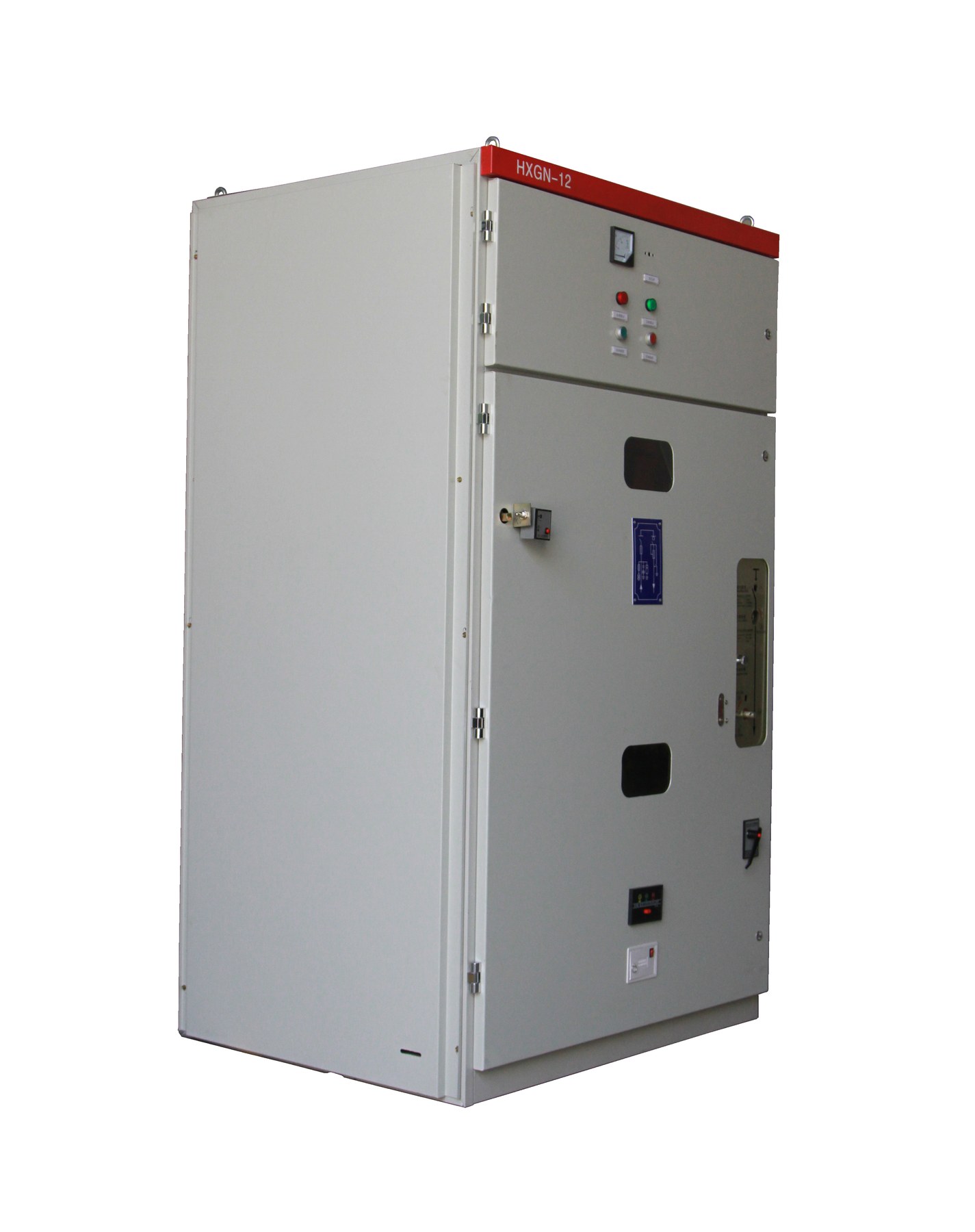

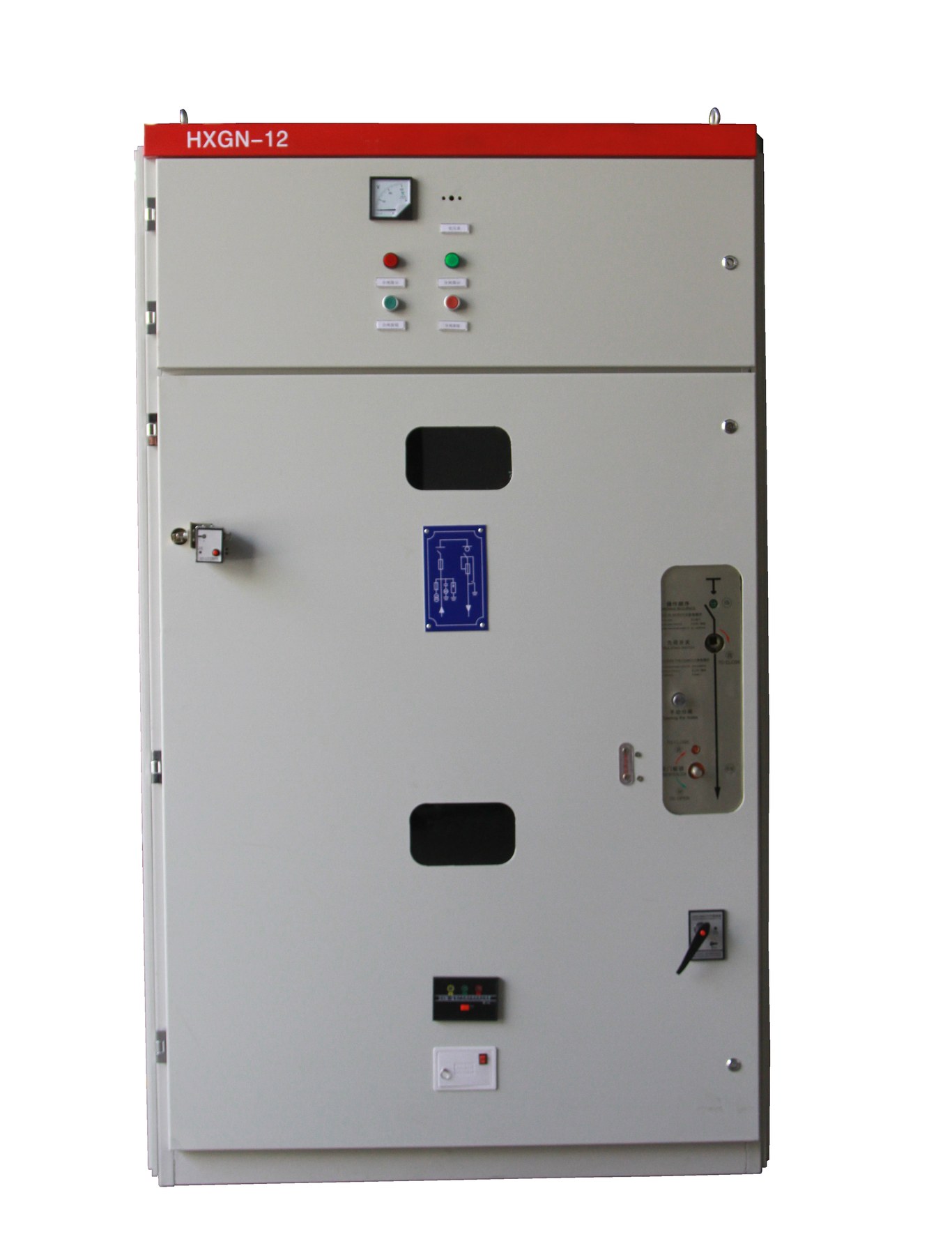

High-voltage Distribution Cabinet

Description

Product Overview

High-voltage switchgear and distribution cabinet for power generation, transmission and distribution systems.

Key Features

• Voltage class coverage for high-voltage distribution and protection applications.
• Compact cabinet structure with optimized insulation and electrode design.
• Supports vacuum circuit breakers, SF6 circuit breakers and multiple main wiring schemes.
• Mechanical interlock and five-prevention functions for safer operation.

Applications

• Power plants
• Substations
• Industrial distribution
• Transmission and distribution systems

Technical Notes

• Rated voltage: 40.5kV
• Rated frequency: 50Hz
• Main busbar current: 1250A / 1600A / 2000A
• Altitude: up to 3000m

Customization Support

Hongtai can customize voltage, output current, cooling method, control mode, cabinet structure, communication interface and export documentation according to project requirements.
