Description
Product Overview

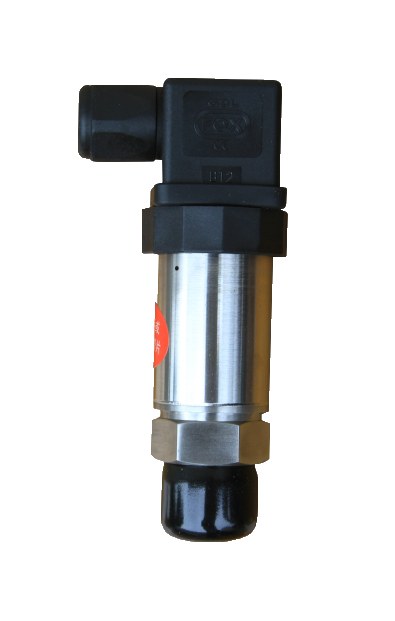

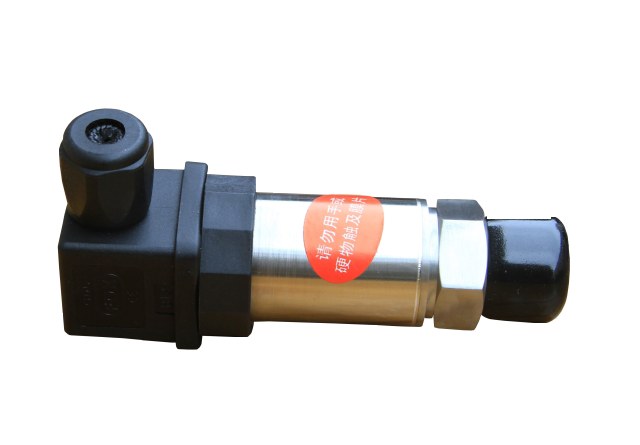

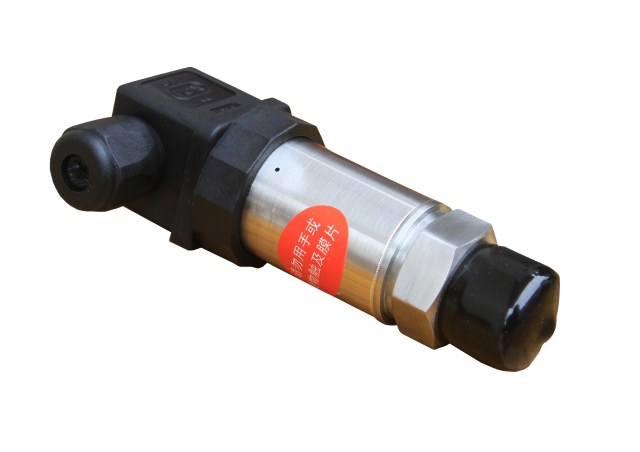

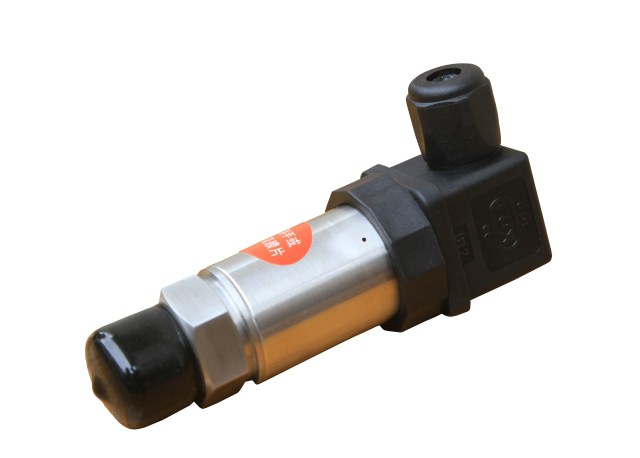

High-performance stainless-steel pressure transmitter for harsh field environments.
Key Features
- Compact integrated stainless-steel structure with convenient installation.
- Good vibration resistance, impact resistance, accuracy and stability.
- Uses monocrystalline silicon piezoresistive effect and electronic conversion circuit.
- Available outputs include 0-5V three-wire and 4-20mA two-wire signals.
Applications
- Petroleum
- Chemical plants
- Metallurgy
- Water conservancy
- Electric power
- Food and medicine pressure measurement
Technical Notes
- Range: 0-2kPa to 60MPa
- Power supply: 12-36VDC, typical 24VDC
- Accuracy: +/-0.5%FS
- Temperature range: -40 to 85C
Customization Support
Hongtai can customize voltage, output current, cooling method, control mode, cabinet structure, communication interface and export documentation according to project requirements.
